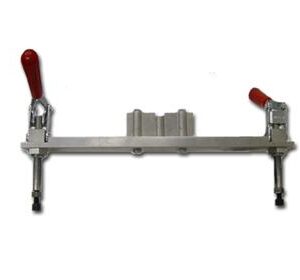

Quick Installation Formed Ring Mounting Assembly

Holds formed "rings" of track in position for pipe welding on nonferrous and ferrous materials. Heights can be adjusted from 2.8" (71.1mm) to 4.95" (125.7mm). Different heights can be achieved using different length 5/16"-18UNC bolts.

Quick Installation Formed Ring Mounting Assembly

Parts

Sort By Show

Showing all 6 results

Select all	P/N	Item #	Add to Quote
Read more	GK-108-059	Hex Bolt 1/4”-20X3/4” (F)	This product is already in your quote request list. Browse the list
Read more	GK-109-052	Hex Nut 5/16”-18 (D)	This product is already in your quote request list. Browse the list
Read more	GK-108-074	Hex Bolt, full thread 5/16”-18X1-1/2” (C)	This product is already in your quote request list. Browse the list
Read more	GK-190-146	Quick Release Track Mounting Support Bar (B)	This product is already in your quote request list. Browse the list
Read more	GK-190-147	Quick Release Track Mounting Lever (A)	This product is already in your quote request list. Browse the list
Read more	GK-165-200	Track Mounting Pad (E)	This product is already in your quote request list. Browse the list
