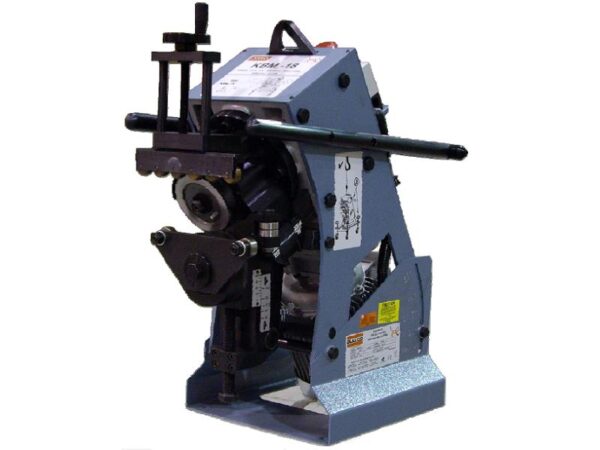

KBM-18 Plate Beveller

KBM-18 Plate Beveller

Item # KBM-18-100 — KBM-18 Plate Beveller

Plate Bevelers, Self Propelled, Portable - KBM-18® produce clean machined bevels with no thermal distortion on mild steel, stainless steel and aluminum plate from 1/4" (6.0 mm) to 1 1/2" (38.1 mm) thick. Thinner material can be beveled... consult factory for details. The KBM-18® bevels the topside of plate reducing time and cost. Savings are further enhanced when the topside Beveler is used with the KBM-18U underside beveler in applications where both sides of the material require beveling.

Adjustable Undercarriage...For Easy Height Adjustment
The KBM-18® can be purchased with a adjustable height, self-aligning, spring-loaded caster wheel assembly for self propelled Beveling along any length of plate maintaining a uniform bevel and consistent root face. Undercarriage sold separate

Angle Bevel Pins...Enable Bevel Angle Adjustment
...KBM-18® units are supplied with a 30º angle bevel pin and can be supplied with bevel angle pins for 22 1/2º, 30º, 37 1/2º, 45º and 55º bevels. Pins for other bevel angles are available upon request.

KBM-18® can be supplied with the following standard equipment:
1- KBM-18-X1C Mild Steel Cutter
1- set Bevel Angle Pins for 22 1/2º, 30º, 37 1/2º, 45º and 55º
1- Tool Kit

Add to Quote

QTY

Specifications

Specifications - Type

Plate Beveller

Specifications - Angle

22 1/2 Âº
30 Âº
37 1/2 Âº
45 Âº
55 Âº

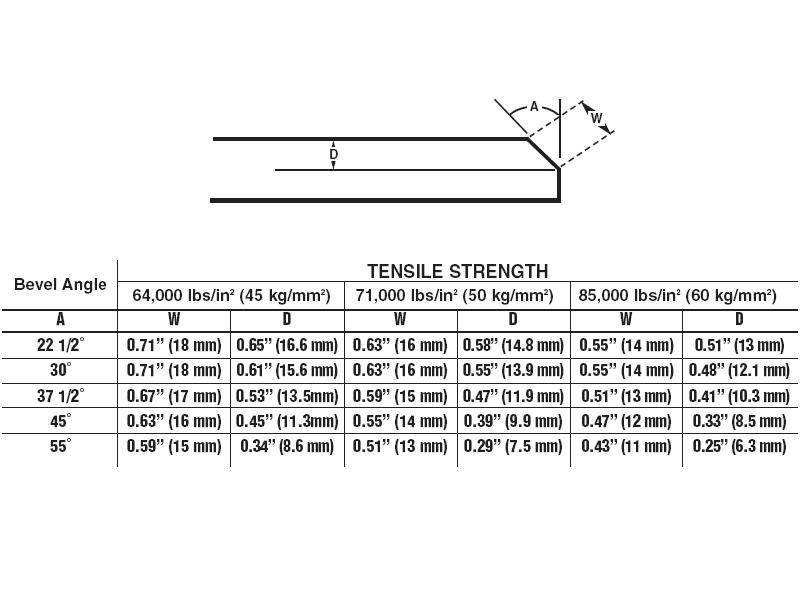

Specifications - Maximum Bevel Width

.71 in
18 mm

Specifications - Maximum Bevel Depth

.61 in
15.6 mm

Specifications - Min. Plate Thickness

1/4 in
6.3 mm

Specifications - Max. Plate Thickness

1 1/2 in
38.1 mm

Specifications - Bevel Speed

118.1 in/min
300 cm/min

Specifications - Motor

2 HP, 3 phase, available for 230, 460 and 575V~ at 60Hz and also 380 and 400/415V~ at 50Hz supply

Specifications - Weight

337 lb
153 kg

Specifications - Complies with

C.S.A./N.R.T.L. (File # LR 35006-6) and C.E. Regulations

More +

Downloads

KBM - Features Brochure

KBM-18 Operational Manual

KBM-18 Plate Beveller-main

KBM-18 Plate Beveller 0

KBM-18 Plate Beveller 1

KBM-18 Plate Beveller-main

KBM-18 Plate Beveller 0

KBM-18 Plate Beveller 1
