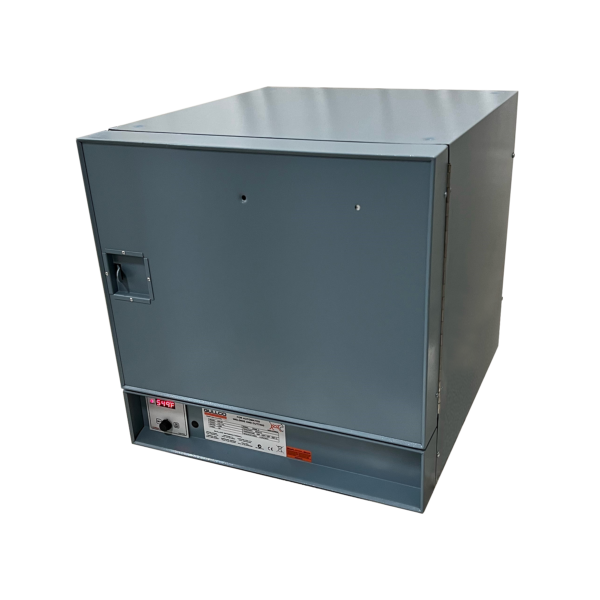

Welding Electrode Oven – 350-DT (Digital Thermostat)

Welding Electrode Oven - 350-DT (Digital Thermostat)

Item # 350-DT — Welding Electrode Oven – 350-DT (Digital Thermostat)

The Model 350-DT series of ovens are 350 lb (159 kg) capacity electrode stabilizing ovens used to
maintain welding electrodes in their dry state or to dry electrodes which have absorbed moisture. The
Model 350-DT is operated on single phase power with heat being supplied by a single element.
They are complete with:

Easy to read digital thermostat (100 - 550°F /38 - 288°C)
Recessed controls for protection
Removable shelves,
Full insulation pilot light
Low watt density element
Nesting feet for easy stacking of up to four ovens

Add to Quote

QTY

Specifications

Specifications - Capacity

159 kg

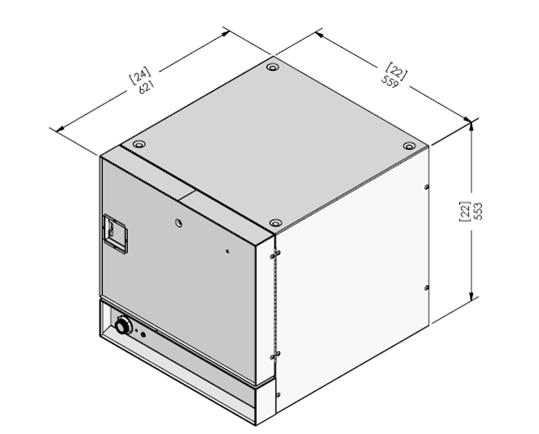

Specifications - Outside Dimensions

H-22”, W-22”, D-24½” H-559mm, W-559mm, D-622mm

Specifications - Inside Dimensions

H-14”, W-16”, D-19” H-355mm, W-406mm, D-482mm

Specifications - Unit Weight (approx.)

47.6 kg

Specifications - Electrode Size

Up to 457 mm

Specifications - Line Cord

2428

Specifications - Thermostat

Digital

Specifications - Pilot Light

Yes

Specifications - Temp. Range

38-288 °C

Specifications - Door Latch

Push/Pull

Specifications - Stacking

Yes

Specifications - Operation

115 or 220 Volt, AC

More +

Downloads

GD-019-DT (Digital Thermostat).pdf

Welding Ovens - Imperial.pdf

Welding Ovens - Metric.pdf

Welding Rod Ovens Brochure - Metric

Welding Rod Ovens Brochure - Imperial
