Home » All Categories»Weld Automation»Mechanical Seam Tracker and Height Sensor System»

Height Sensor has a stainless steel ball transfer that is particularly useful to maintain contact on curved surfaces or vertical applications

Height Sensor has a stainless steel ball transfer that is particularly useful to maintain contact on curved surfaces or vertical applications

Item # GK-190-602 — Height Sensor has a stainless steel ball transfer that is particularly useful to maintain contact on curved surfaces or vertical applications

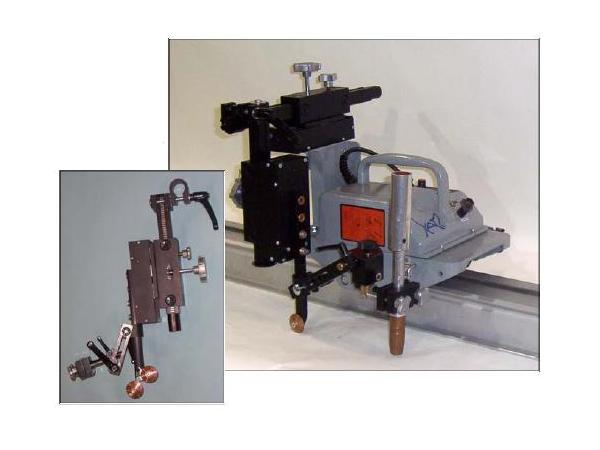

Gullco Mechanical Seam Trackers and Height Sensors are designed for use with the Gullco Kat Travel Carriage to accurately maintain the required, pre-set distance between the gun or torch and the workpiece in automated welding and cutting operations.

Three models are available to effectively meet various application needs. All are constant velocity, spring-type sensors utilizing hardened and ground slide bars with recirculator ball bushings to provide 1-3/4"(44mm) of torch float.

Other float distances available on request.

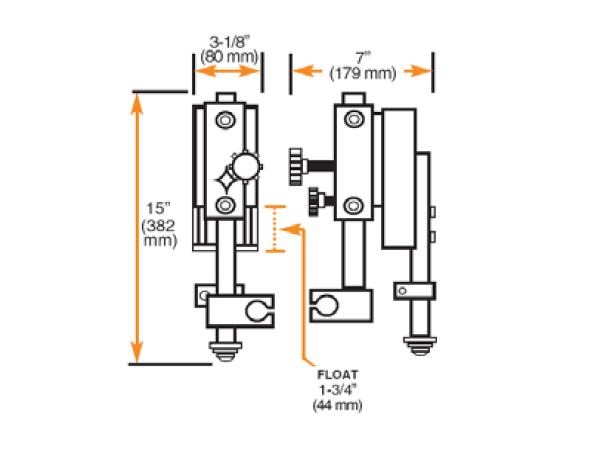

Mechanical Height Sensor with constant velocity spring, hardened ground rods and circulator ball bushings to provide 1-3/4"(44mm) of torch float.

Supplied complete with hardened stainless steel ball assembly, 1-1/8"(29mm) sq. rack box, 12"(304mm) rack arm and swivel mounting clamp for attachment to Kat Travel Carriage arm.

Add to Quote

QTY

Downloads

Height Sensor has a stainless steel ball transfer that is particularly useful to maintain contact on curved surfaces or vertical applications-main

Height Sensor has a stainless steel ball transfer that is particularly useful to maintain contact on curved surfaces or vertical applications 0

Height Sensor has a stainless steel ball transfer that is particularly useful to maintain contact on curved surfaces or vertical applications 1

Height Sensor has a stainless steel ball transfer that is particularly useful to maintain contact on curved surfaces or vertical applications-main

Height Sensor has a stainless steel ball transfer that is particularly useful to maintain contact on curved surfaces or vertical applications 0

Height Sensor has a stainless steel ball transfer that is particularly useful to maintain contact on curved surfaces or vertical applications 1
