KAT® Automation Carriage – Flexible Track – 4.2 – 139.1 IMP (10.6 – 353 cm/min) – 115 VAC

KAT® Automation Carriage - Flexible Track - 4.2 - 139.1 IMP (10.6 - 353 cm/min) - 115 VAC

Item # GK-200-FHB — KAT® Automation Carriage – Flexible Track – 4.2 – 139.1 IMP (10.6 – 353 cm/min) – 115 VAC

All Downloads

Welding Carriage
Programmable
Low Voltage
All Position
Variable Speed

Incorporating Gullco's highly versatile "G Type" control
Reliable automation that improves quality and reduces costs in welding and cutting operations

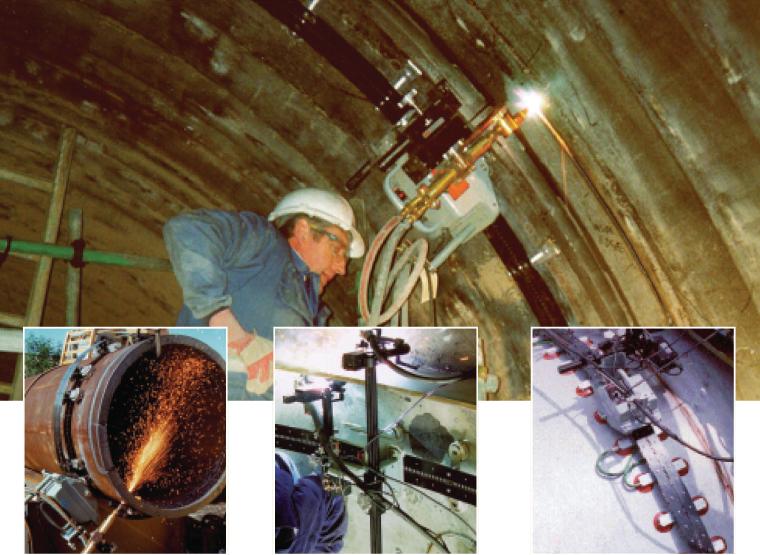

The Gullco Flex KAT® is used throughout the world to automate a wide variety of welding and cutting operations. It is a rugged, reliable precision travel carriage designed for use flexible track which enables it to operate on straight or curved surfaces along any plan Gullco manufactures several systems and accessories designed for use with the Flex KAT®...making it one of the most versatile pieces of welding/cutting automation equipment available.

The Gullco Flex KAT® carriage is used throughout the world to automate and improve the quality and efficiency of single or multiple "head" welding/cutting operations. Welding guns or cutting torches mounted on the KAT® carriage move along flexible Gullco "Flex Track" at precisely controlled speeds along the desired path in forward or reverse direction. Gullco's Flex KAT® carriage enables welding guns or cutting torches to operate with precise motion from start to finish regardless of the number of passes or the work pieces involved, improving the quality, efficiency and repeatability of the process. Poor or awkward accessibility, operator fatigue, or inconsistent workmanship are eliminated.

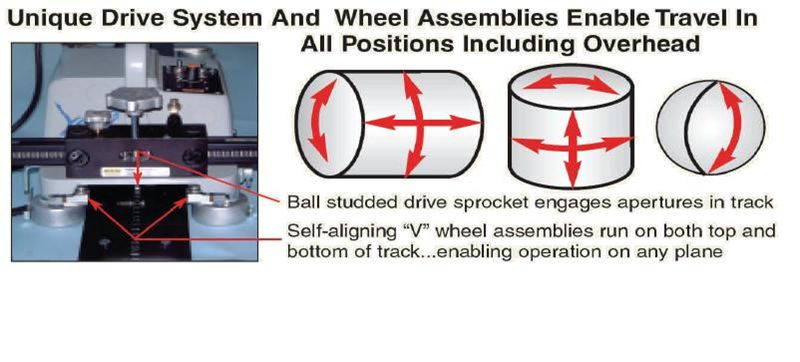

This unit is designed for operation on curved surfaces as the flexible track can be positioned to follow the contour of the workpiece. The self-align ing wheel system of the carriage grips the top and bottom of the track, enabling it to travel along any plane. The adjustable wheel assembly keeps the carriage snug to the track, while allowing it to be easily mounted and removed from the track at any point. The positive drive of the KAT® is obtained from a uniquely designed sprocket that engages with slots in the track, driven by a low voltage permanent magnet motor and gear-head power unit assembly.

KAT® Automation Carriage - Flexible Track - 4.2 - 139.1 IMP (10.6 - 353 cm/min) - 115 VAC

KAT® Automation Carriage – Flexible Track – 4.2 – 139.1 IMP (10.6 – 353 cm/min) – 115 VAC

Welding Carriage
Programmable
Low Voltage
All Position
Variable Speed

Incorporating Gullco’s highly versatile “G Type” control
Reliable automation that improves quality and reduces costs in welding and cutting operations

The Gullco Flex KAT® is used throughout the world to automate a wide variety of welding and cutting operations. It is a rugged, reliable precision travel carriage designed for use flexible track which enables it to operate on straight or curved surfaces along any plan Gullco manufactures several systems and accessories designed for use with the Flex KAT®…making it one of the most versatile pieces of welding/cutting automation equipment available.

The Gullco Flex KAT® carriage is used throughout the world to automate and improve the quality and efficiency of single or multiple “head” welding/cutting operations. Welding guns or cutting torches mounted on the KAT® carriage move along flexible Gullco “Flex Track” at precisely controlled speeds along the desired path in forward or reverse direction. Gullco’s Flex KAT® carriage enables welding guns or cutting torches to operate with precise motion from start to finish regardless of the number of passes or the work pieces involved, improving the quality, efficiency and repeatability of the process. Poor or awkward accessibility, operator fatigue, or inconsistent workmanship are eliminated.

Add to quote

SKU: GK-200-FHB Categories: KAT® 200 Welding and Cutting Automation Carriage - Flexible Track, Weld Automation

Add to Quote

QTY

Specifications

Specifications - Model

FHB

Specifications - Input Supply

115 VAC

Specifications - Option

Carriage options must be selected

Specifications - Drive Motor

24 VDC permanent magnet gear motor

Specifications - Supply Voltage

42, 115 or 230 VAC, single phase, 50/60 Hz., 200 watts

Specifications - GSP Control

The Gullco Standard Platform range of controls have switching for forward/neutral/reverse, run/stop, Manual/Auto & program variable increment/decrement (where applicable) and a rotary encoder for speed control. This micro-processor based, 24 volt DC motor control can be supplied to provide a variety of "optional" functions such as indexing, weld oscillation and auto-weld. The selected "option" function and carriage travel speed/direction are directed by a single GSP control. This ensures high levels of accuracy, quality and reliability.

Specifications - Complies with

C.S.A. & CE Certification

More +

KAT® Automation Carriage – Flexible Track – 4.2 – 139.1 IMP (10.6 – 353 cm/min) – 115 VAC-main

KAT® Automation Carriage – Flexible Track – 4.2 – 139.1 IMP (10.6 – 353 cm/min) – 115 VAC 0

KAT® Automation Carriage – Flexible Track – 4.2 – 139.1 IMP (10.6 – 353 cm/min) – 115 VAC 1

KAT® Automation Carriage – Flexible Track – 4.2 – 139.1 IMP (10.6 – 353 cm/min) – 115 VAC 2

KAT® Automation Carriage – Flexible Track – 4.2 – 139.1 IMP (10.6 – 353 cm/min) – 115 VAC 3

KAT® Automation Carriage – Flexible Track – 4.2 – 139.1 IMP (10.6 – 353 cm/min) – 115 VAC 4
