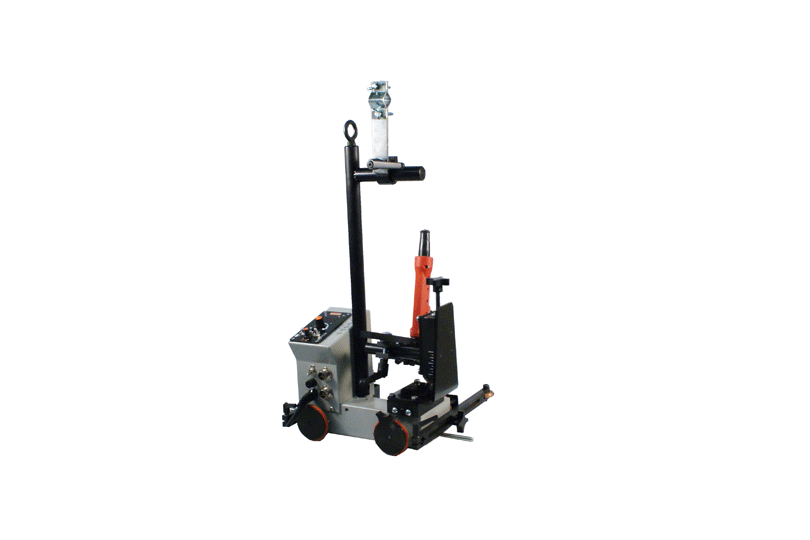

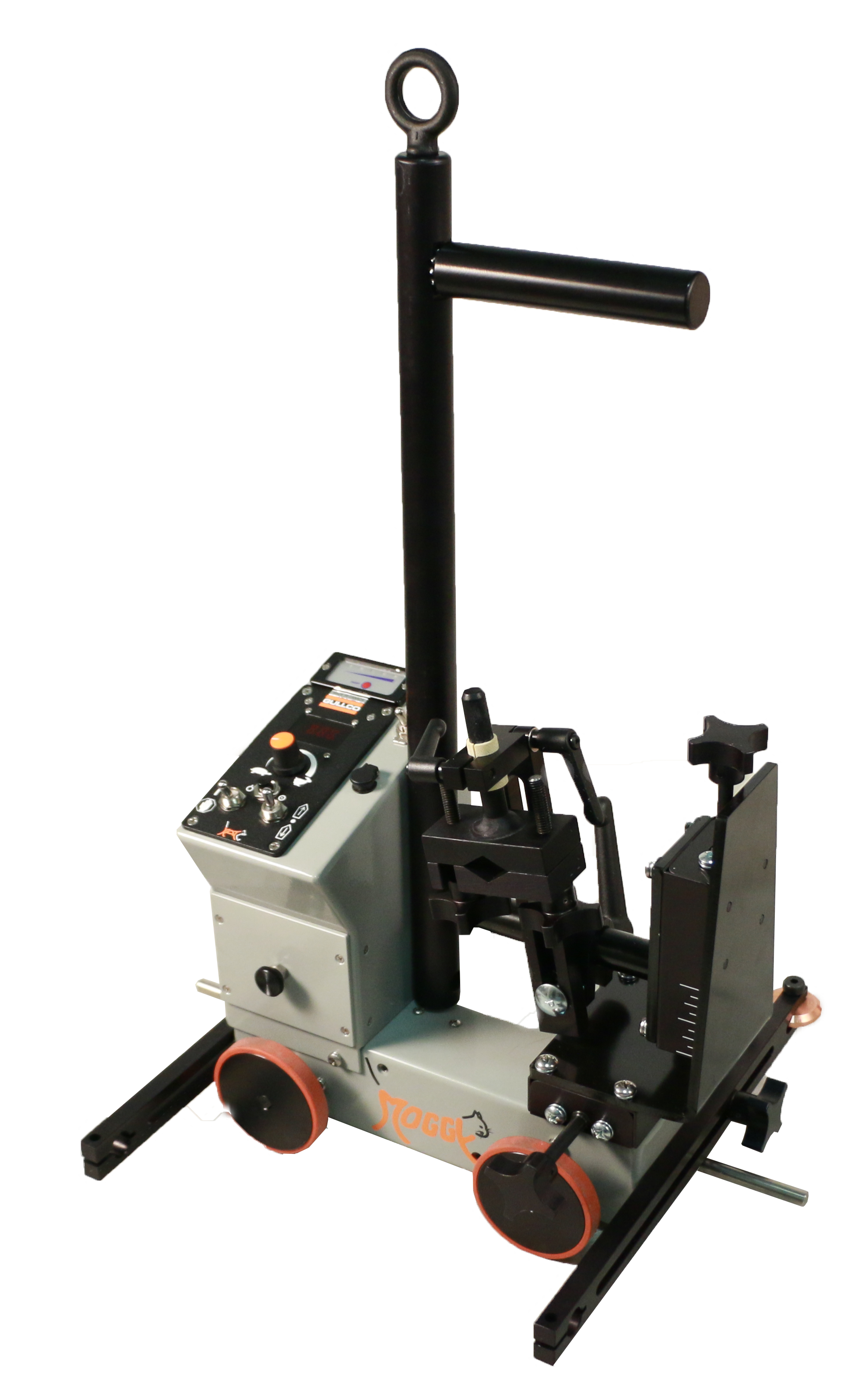

Battery Powered Welding Automation - MOGGY® Carriage
Item # GM-05-100 — Battery Powered Welding Automation – MOGGY® Carriage
Ideal for safety-related applications with mandatory 50V or less. Automatic fillet, lap or butt welding applications
9h Battery life during standard welding applications
Full battery charge in 1h30 mins from 0%
The control allows for both continuous or stitch welding operations
Dual gun holder assemblies make automated simultaneous welding efficient
The MOGGY® can be equipped with a variety of accessories including: weld oscillator, cutting torch attachment and internal radius guide wheels
Battery Features
- Battery: LG® 28.8V 3000mAh Li-Ion Battery Pack
- Battery Life: 9hrs (at 14 IMP travel speed)
- Protection: 8S 4A PCM protects from overcharge, over discharge, over drain, short circuit, over temperature damage
- Battery Working Temperature: -20°C (-4°F) - 75°C (167°F)
- Battery Life Meter: Easily visible during operation
- Charge Cycles - 500 full charges
- Air Shipment Certified- UN38.3
May be charged, through the convenient plug on the carriage. The protected battery is safe from debris and harsh work environments

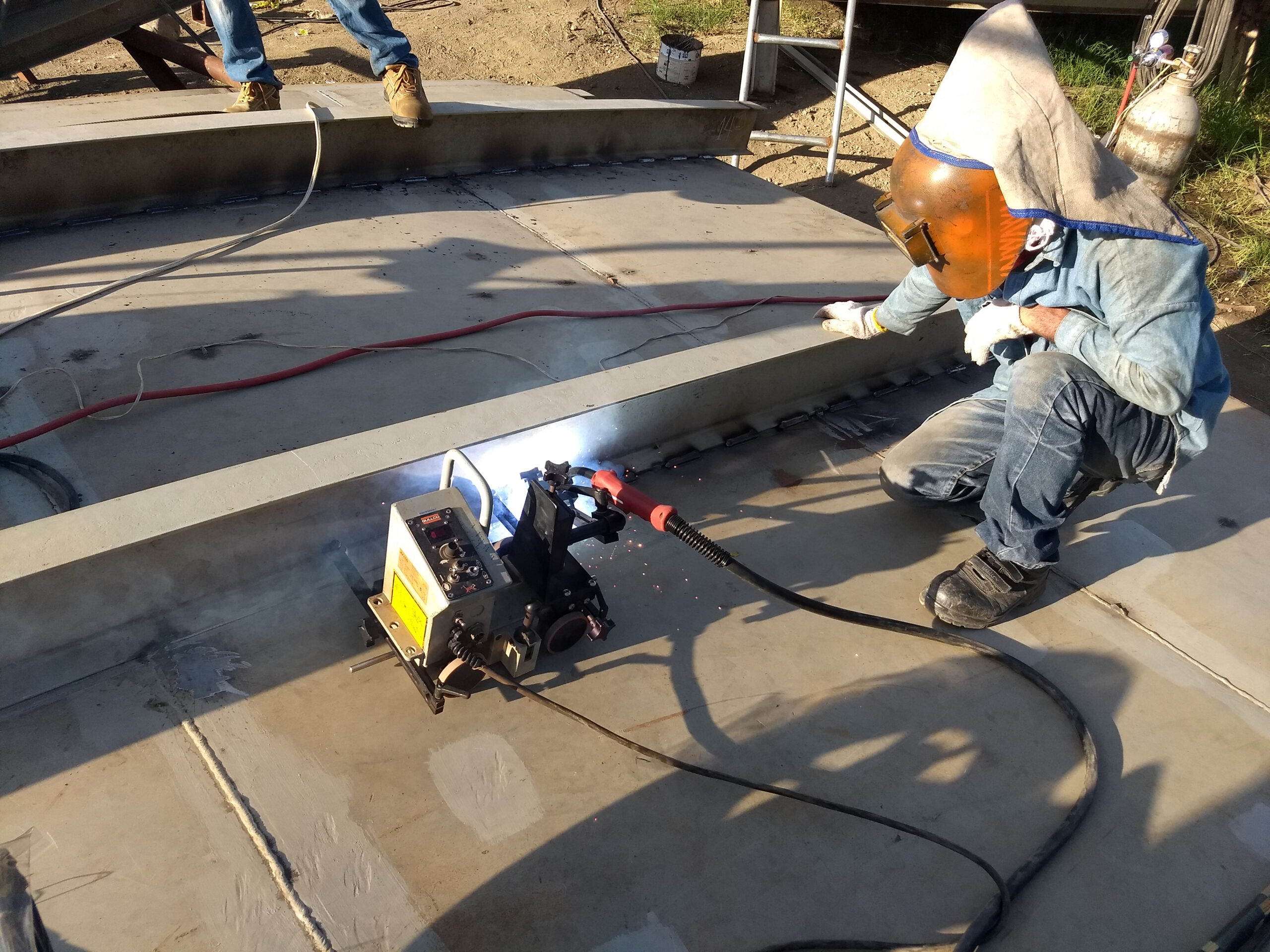

The MOGGY® is intended to automate and improve the quality of welding and cutting operations by carrying the welding gun(s) or cutting torch(es), at precisely controlled speeds, along the path of the joint. The MOGGY® carriage also provides interface between the welding and cutting motion and the arc start and stop signals. The automation carriage is normally guided by adjustable guide wheels which are set to always steer the carriage slightly into the vertical member (usually either the vertical member of a fillet joint or a template/fence placed parallel to the joint). Industry standard 6” v-groove track may also be used to guide the path of the MOGGY®. The carriage is flexible enough to allow it to be easily configured for horizontal lap, butt and fillet weld joints as well as a variety of cutting processes. Using the MOGGY® automation carriage system will add accuracy and uniformity to welding and cutting applications while increasing productivity.
Typical applications include shipbuilding, offshore construction, steel fabrication, etc.
